For high-volume manufacturers like ring gears, bearing races, and transmission components, dimensional stability is everything. Asymmetrical distortion during quenching causes runout, taper, and out-of-roundness.
Press quenching (fixture quenching) mechanically clamps the hot component inside precision dies while oil flows through controlled orifices, constraining distortion while the part transforms into martensite.

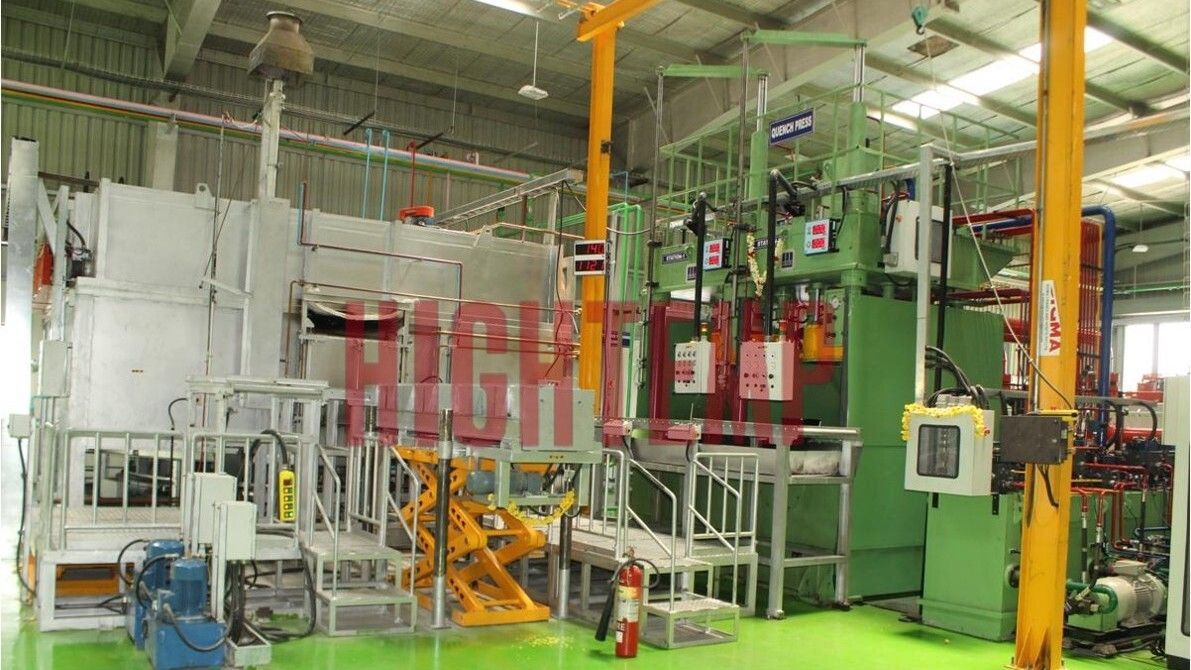

However, a press quench is strictly a single-part operation. To run an automated press quench cell efficiently, this furnace delivers parts one by one, at a uniform temperature, directly to a handling robot without thermal loss.
1. Rotary Motion
Automated press quenching relies on synchronized, piece-by-piece loading and unloading. A rotary hearth furnace provides the ideal layout for this workflow.
• Compact Circular Footprint: Charge and discharge through same door eliminate the space used in linear furnaces.
• Precise Indexing: Encoder-guided servo drives position parts within ±1–2 mm for reliable robotic gripping.
2. Temperature Uniformity & Thermal Management
Maintaining exact austenitizing or re-heating temperatures across every workpiece is mandatory before the part enters the quench dies.
• Multi-Zone Temperature Control: Independent preheat, heat, and soak zones deliver precise thermal profiling.
• Uniform Soak Times: Identical circular paths ensure consistent thermal heat transfer and metallurgical properties for every part.
3. Atmosphere Integrity & Surface Metallurgy
Most parts requiring press quenching are case-carburized or finished-machined alloy steels that cannot tolerate decarburization or scale formation
• Positive Pressure Blanketing: Precise endo-gas or nitrogen-methanol atmosphere control prevents scaling and decarburization.
• Labyrinth Seals: Oil or sand troughs with wiper blades block ambient air ingress along the rotating hearth perimeter.
• Flame Curtains & Purges: Rapid door openings are protected by inert gas purges or automatic flame curtains to restrict oxygen entry.
4. Automation & Robotic Integration
Integrating an RHF into a closed-loop Industry 4.0 cell eliminates human operators from the hazardous high-heat zone.
• Vision-Guided Handling: High-temperature 2D/3D cameras confirm part position, orientation, and seating before robotic pickup.
• Synchronized PLC Control: Automated handshakes coordinate doors, hearth indexing, and robot motions to ensure sub-few second press transfer.
At HIGHTEMP FURNACES LTD, we engineer and manufacture Rotary Hearth Furnaces built specifically for robotic integration, tighter atmosphere control, and energy efficiency. Whether you are looking to set up an automated, single-piece-flow press quench cell or require expert commercial heat treatment services, our metallurgical engineers are equipped to support your production goals.
• Custom Equipment Engineering: High-efficiency combustion, electric heating systems, and CP control designed to your exact cycle times.
• Turnkey Automation Integration: Engineered mechanical seals, high-speed door actuation, and PLC architectures ready for vision-guided robotic load/unload.
• Commercial Heat Treatment Services: World-class facility capabilities to support your overflow, testing, and specialty process requirements.
Ready to eliminate quench distortion and optimize your production line?
