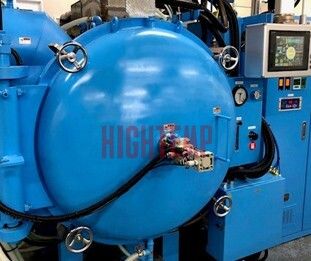

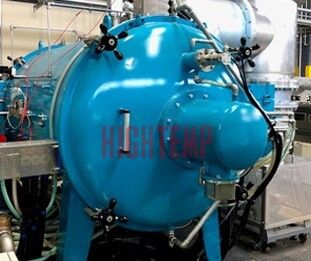

Our vacuum furnace is a specialized industrial furnace used to heat metals and ceramics in a vacuum or controlled inert or reducing gas atmosphere. It achieves extremely high temperatures—up to around 2200°C—while eliminating air from the chamber. This prevents oxidation, decarburization, and other forms of contamination, ensuring clean and precise heat-treatment results.
Safety
Quality Tested
Automation
Models Available
Specifications
Maximum operating temperature upto 2200°C
Integrated debinding and sintering furnace system for Metal Injection Molding (MIM) and Ceramic Injection Molding (CIM)
Double-walled, water-cooled stainless steel vacuum chamber
Hot zone materials:
- 1. Molybdenum or tungsten hot zones for ultra-high temperatures up to 1800°C
- 2. Graphite insulation and heating elements for temperatures upto 2200°C
Our vacuum system uses rotary vane, roots booster, and diffusion or turbo pumps to achieve vacuum from 10⁻² torr to several tens of torr.
The cooling system uses internal gas quenching with nitrogen, argon, or helium.
The control system includes PLC / SCADA control, PID temperature regulation, recipe programming, data logging, and safety interlocks.
Load capacity typically ranges from 50 to 1000 kgs based on model
Optional features include oil-free pumping, dew point monitoring, gas backfilling, partial pressure control, and remote or Industry 4.0 monitoring.
Advantages
Lower Operating Costs
Continuous single-cycle debinding cum sintering and an energy-efficient heating chamber significantly reduce power consumption and overall processing costs.
High Thermal Efficiency and Uniformity
Excellent high-temperature characteristics and precise hot zone engineering ensure uniform temperature distribution and consistent heating quality across every load.
Robust and Reliable Chamber Design
A compact, durable chamber structure supports stable, long-term operation with minimized maintenance requirements.
High Productivity through Forced Gas Cooling
Integrated forced gas cooling with high-speed circulation accelerates cooling cycles, enabling higher throughput and improved production efficiency.
Partial Pressure Control for Sensitive Materials
Precise control of partial pressure using Ar or N₂ allows processing of materials containing high-vapour-pressure elements, preventing oxidation and surface degradation.
Advanced Forced Cooling System
An integrated heat exchanger combined with high-speed inert gas flow supports rapid, controlled cooling suitable for stringent metallurgical requirements.
Reduced Maintenance and Longer Hot Zone Life
Anti-deformation and wear-resistant design of the hot zone minimizes maintenance and extends service intervals.
Fully Automated Operation
PLC-based program control enables completely automated furnace cycles, reducing operator dependency and ensuring repeatable quality.
Industries Served
Electronics Industry Industry
HIGHTEMP’s vacuum furnace is an essential solution for the electronics industry, providing ultra-clean, high-precision heat treatment and sintering in a controlled vacuum or inert gas environment. By eliminating oxygen, moisture, and contaminants, it ensures oxidation-free processing, uniform heating, and stable metallurgical properties, which are critical for high-performance electronic components.
Material Grades Available
- Molybdenum (Mo) -
- Tungsten (W) -
- Kovar (ASTM F15) -
- Invar 36 -
Parts
Hermetic electronic packages - metal headers, transistor cans, ceramic packages., Lead frames - power devices, IC packages., Electrodes - power electronics, displays, X-ray / vacuum devices., Heat spreaders / base plates - semiconductor modules, power electronics., Sputtering targets - thin-film deposition, semiconductor fabs., Filaments & heaters - vacuum tubes, semiconductor equipment., Precision frames & supports - display masks, sensor & optoelectronic assemblies
Why Choose Hightemp
HIGHTEMP, a subsidiary of DOWA Thermotech Co. Limited is India’s No 1 manufacturer of Heat Treatment Furnaces selling over 1700 globally, and 500 Sealed Quench Furnaces.
HIGHTEMP is equipped with technology such as SCADA, and FURNACE 4.0 (IoT-enabled Furnaces), remote access to process data on HIGHTEMP’s equipment.
Safety features such as high-pressure safety valve, over-temperature safety protector, audio-visual indication, and alarms comes as a basic requirement of all furnaces.
Oxygen Probe Control System includes carbon potential controller and actuator motor with valve.
HIGHTEMP offers cost-effective SQF without compromising on quality and industry requirements.
